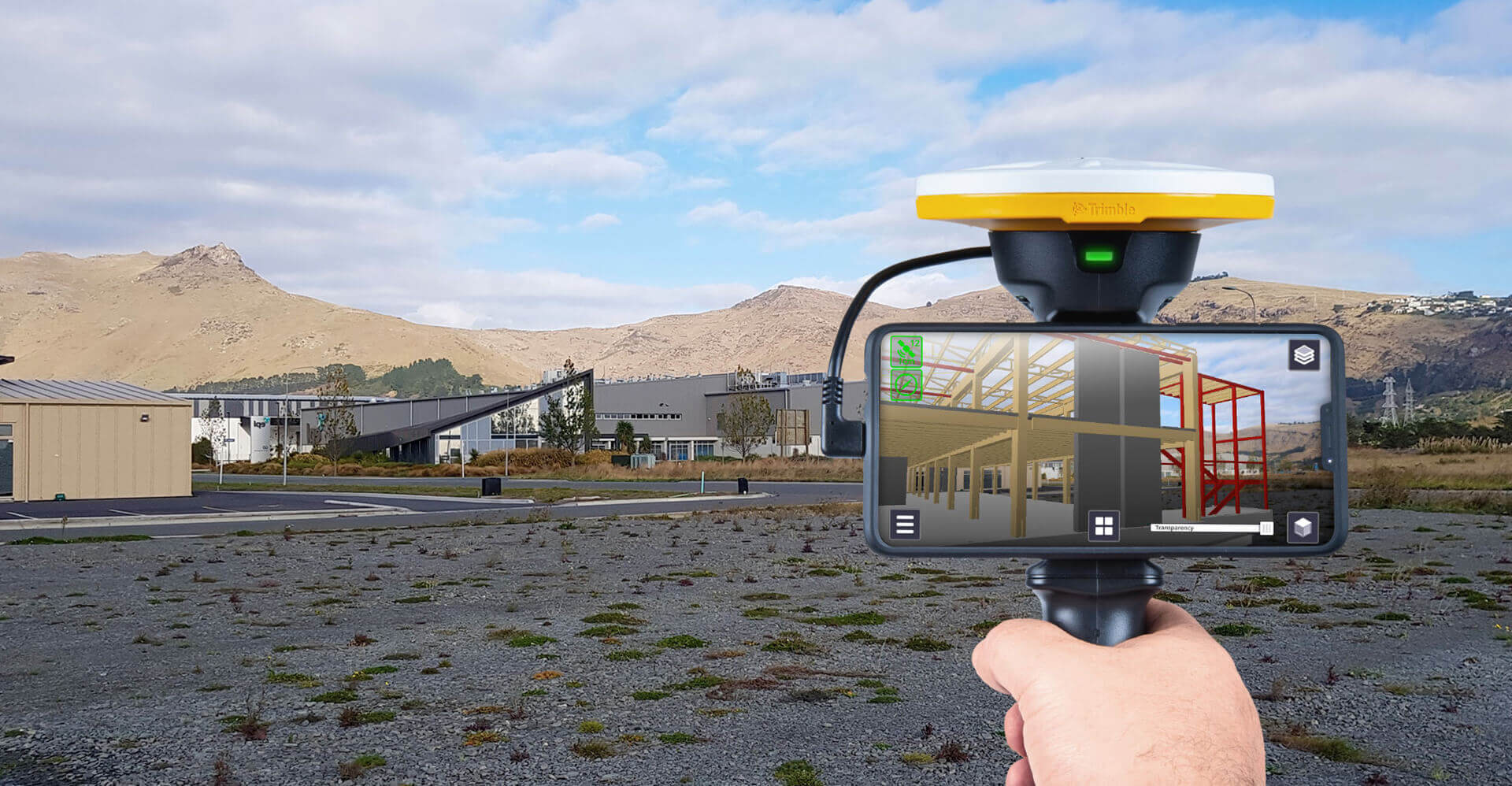

September 18, 2019 – Trimble has announced the introduction of its ‘Trimble SiteVision’ system, an outdoor augmented reality (AR) solution that enables users to visualize 2D and 3D data on virtually any project site with cellular or internet connectivity, to help with more efficient planning, collaboration and reporting. Through the combination of hardware and software in a handheld or pole-mounted solution, users can view 3D models and assets in a real-world environment at a 1:1 scale, from any angle or position, according to the company.
The system consists of:
- Hardware: The Trimble SiteVision Integrated Positioning System integrates the Trimble Catalyst DA1 Antenna, Electronic Distance Measurement (EDM) rangefinder and power management into a lightweight, handheld device that connects to a user-supplied Android mobile phone.
- Software Subscription: Available to single users on a monthly or yearly basis, the SiteVision software subscription combines Trimble’s positioning services and cloud-based processing technology to create a centimeter-accurate AR system. The system leverages Trimble cloud-based processing to manage and deliver data and design models.
Trimble states that SiteVision enables users to visualize digital models from a wide range of data collection, design and constructible modeling tools in open industry-standard formats including IFC and LandXML. For civil projects, SiteVision visualizes data from Trimble’s Quantm, Business Center and Novapoint software packages; design data from Civil 3D and Bentley OpenRoads; and GIS data from Esri ArcGIS software. SiteVision powers Building Information Modeling (BIM) projects with open data from Trimble’s Constructible BIM solutions including SketchUp and Tekla, and BIM data from Autodesk Revit and AutoCAD software. For utility companies, PLS-CADD power line design, Distribution Design Studio (DDS) and other industry-specific design data is also supported.
Using Trimble Connect cloud-based hosting, SiteVision can access models from all stages of the lifecycle of infrastructure and buildings—from initial concepts of roads or buildings through to the operations and maintenance phase of the assets. The company anticipates that SiteVision will help to increase collaboration, enhance work accuracy and improve operations and utilization for businesses.
SiteVision is designed to simplify complex concepts by allowing users to blend digital content with real-world environments. For example, city planners can visualize a new building design in the exact spot it is to be erected, a work crew could identify the exact position of underground cables or pipes before digging, an electric utility can confirm placement of poles and lines with customers and crews, or a construction supervisor could assess the progress of heavy equipment by visualizing actual work performed against the site plan.
“It’s easier to understand complex ideas when we can see them in a real-world context,” said Mark Nichols, General Manager at Trimble. “SiteVision improves our understanding of projects and worksites with a handheld device that is accessible to a wide range of users. Augmented reality is now ready for everyday use in a wide range of applications.”
Trimble SiteVision is available to order now through Trimble’s authorized distribution channels for Civil Engineering and Construction, Geospatial, and Buildings. For more information, visit: https://sitevision.trimble.com.
